پانل هشدار دهنده برای گاز مونوکسیدکربن مدل LLHCO
پانل هشدار دهنده برای گاز مونوکسیدکربن مدل LLHCO

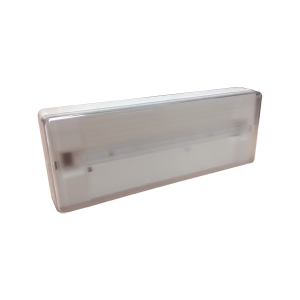

Light sign for CO system.
Description
When the CO / NO2 concentration accumulated in the compound is sufficiently high as to be dangerous to people, COsensor detection control panels activate alarm output.
The function of these sounders is warning its occupants so they leave it and will not come until the alarm stops.
Supply: 10 – 28 Vcc
Consumption: 90 mA at 24Vdc
Buzzer: YES (98 dB at 1 m)
Operating temperature: -10ºC to 50ºC
Size: 365 x 180 x 50 mm
Features
Operating voltage: 12-30 Vdc
Consumption: 80mA at 30 Vdc
Power: 80dB at 1 m
IP protection: IP40
Standard: EN 60598, EN 60598-2-1, EN 61547, EN 55015
Temperature: 0 to 40°C
Humidity: 95% RH
Size: 262x100x51 mm
Weight: 340gr
Jumper: Fixed / flashing lighting
Buzzer: Active / no active
- Title: SIRENAS CO_NO2-FICHA_ING (0 click)
Caption:
Filename: sirenas-co_no2-ficha_ing.pdf
Size: 432 kB
