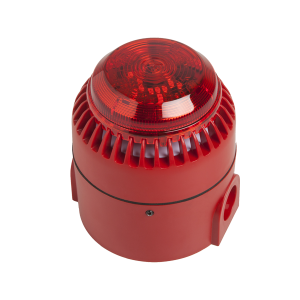

DUAL TONE WITH LIGHT ALARM SIR 24BL
DUAL TONE WITH LIGHT ALARM SIR 24BL
Indoor and outdoor dual tone with light sounder made of red ABS.
Description
Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.
SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC
Indoor and outdoor sounder made of in red ABS.
High volume sound. Low consumption.
32 selectables tones. Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base.
BSLC: Base with light, certified according EN54-23.
Features
| Voltage range | 9-28 Vdc |
| Consumption (using tone 3) | a 24 Vdc 16 mA |
| Output volume (tone 3) | a 24 Vdc 102 dB (A) |
| Operating temperature | -25ºC a +70ºC |
| Dimensions | Ø95 x 91 mm (SIR24B)Ø95 x 135 mm (SIR24BL/SIR24BZA)
Ø95 x 95 x 135 mm (SIR24B+BSLC) |
| IP protection | IP54-SIR24BIP65-SIR24BL
IP65-SIR24BZA IP65-SIR24B+BSLC |
-
-
Title: ALGORITHMIC DIAGRAM_ING (0 click)
Caption:
Filename: algorithmic-diagram_ing-19.pdf
Size: 638 kB
-
-
Title: SIR24B_BL_BZA_BSLC-FICHA_ING (0 click)
Caption:
Filename: sir24b_bl_bza_bslc-ficha_ing-2.pdf
Size: 481 kB
