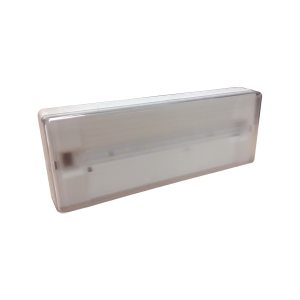

LLHCO LIGHT SIGN
Light sign for CO system.
Description
Sign to be directly connected to the output of the control panels or relay modules. With indication adhesive.
Features
Operating voltage: 12-30 Vdc
Consumption: 80mA at 30 Vdc
Power: 80dB at 1 m
IP protection: IP40
Standard: EN 60598, EN 60598-2-1, EN 61547, EN 55015
Temperature: 0 to 40°C
Humidity: 95% RH
Size: 262x100x51 mm
Weight: 340gr
Jumper: Fixed / flashing lighting
Buzzer: Active / no active
