آژیر فلشردار مدل SIR 24BL

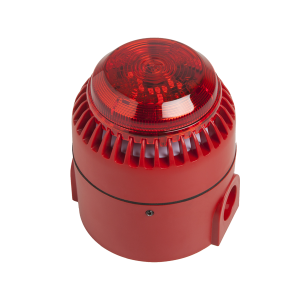

Indoor and outdoor dual tone with light sounder made of red ABS.



Description

Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.

SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC

Indoor and outdoor sounder made of in red ABS.
High volume sound. Low consumption.
32 selectables tones. Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base.
BSLC: Base with light, certified according EN54-23.

Features

Voltage range 9-28 Vdc
Consumption (using tone 3) a 24 Vdc 16 mA
Output volume (tone 3) a 24 Vdc 102 dB (A)
Operating temperature -25ºC a +70ºC
Dimensions
Ø95 x 91 mm (SIR24B)Ø95 x 135 mm (SIR24BL/SIR24BZA)



Ø95 x 95 x 135 mm (SIR24B+BSLC)

IP protection
IP54-SIR24BIP65-SIR24BL



IP65-SIR24BZA

IP65-SIR24B+BSLC

ALGORITHMIC DIAGRAM_ING
Title: ALGORITHMIC DIAGRAM_ING (0 click)
Caption:
Filename: algorithmic-diagram_ing-19.pdf
Size: 638 kB
SIR24B_BL_BZA_BSLC-FICHA_ING
Title: SIR24B_BL_BZA_BSLC-FICHA_ING (0 click)
Caption:
Filename: sir24b_bl_bza_bslc-ficha_ing-2.pdf
Size: 481 kB
