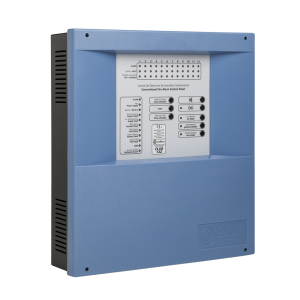

Automatic conventional fire detection and fire alarm control panel.
Description
Automatic conventional fire detection and fire alarm control panel.
This control panel provides different versions to fit more accurately to the needs of each facility:
• CLVR 02Z: CLVR Control panel up to 2 zones.
• CLVR 04Z: CLVR Control panel up to 4 zones.
• CLVR 08Z: CLVR Control panel up to 8 zones.
• CLVR 12Z: CLVR Control panel up to 12 zones.
CLVR control panels features are common in all its models.
Features
• Control panels up to 12 zones for conventional detectors and call points use.
• 2 supervised sounder outputs, delayed from 0 to 10 minutes, and protected by a fuse.
• 1 alarm output through a dry contact NO/NC (normally open / normally closed).
• 1 fault output through a dry contact NO/NC (normally open / normally closed).
• 2 auxiliary outputs 30V/DC supervised and protected by a fuse to feed external (magnetic fire doors, sounders, etc).
• Available testing mode to facilitate the quick and easy verification of the sensors and call points.
• It allows to configure the open line, alarm detector and alarm call point threshold, to adjust to the operation with other detectors.
• It allows to configure the last detection zone as a supervision input of a external protection fire system with a fault indication.
• Metallic chest with frontal bolted door, 4 predrilled of 28 mm and one rectangular else of 140 x 20 mm for electric wiring and space for 2 batteries of 7Ah.
• RS485 MODBUS protocol on-demand.
• Possibility of software ON-LINE on PC using MODBUS functionality.
• CONTACTID on-demand.
• Certified according to EN 54-2 & EN 54-4 standards and CE mark.
• 2 supervised sounder outputs, delayed from 0 to 10 minutes, and protected by a fuse.
• 1 alarm output through a dry contact NO/NC (normally open / normally closed).
• 1 fault output through a dry contact NO/NC (normally open / normally closed).
• 2 auxiliary outputs 30V/DC supervised and protected by a fuse to feed external (magnetic fire doors, sounders, etc).
• Available testing mode to facilitate the quick and easy verification of the sensors and call points.
• It allows to configure the open line, alarm detector and alarm call point threshold, to adjust to the operation with other detectors.
• It allows to configure the last detection zone as a supervision input of a external protection fire system with a fault indication.
• Metallic chest with frontal bolted door, 4 predrilled of 28 mm and one rectangular else of 140 x 20 mm for electric wiring and space for 2 batteries of 7Ah.
• RS485 MODBUS protocol on-demand.
• Possibility of software ON-LINE on PC using MODBUS functionality.
• CONTACTID on-demand.
• Certified according to EN 54-2 & EN 54-4 standards and CE mark.
