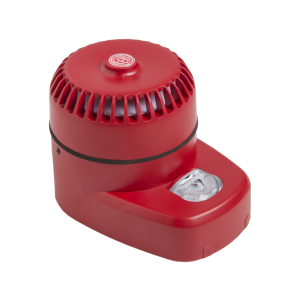

Indoor and outdoor dual tone alarm sounder with light made of red ABS plastic.
آژیر و آژیر فلشردار مدل SIR24B+BSLC
آژیر و آژیر فلشردار مدل SIR24B+BSLC
Description
Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.
SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC
Indoor and outdoor sounder made of red ABS plastic.
High volumen sound.
Low consumption.
32 selectables tones.
Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base
BSLC: Base with light, certified according EN54-23.
Features
| Voltage range | 9-28 Vdc |
| Consumption (using tone 3) | at 24 Vdc 16 mA |
| Output volume (tone 3) | at 24 Vdc 102 dB (A) |
| Operative temperature | -25ºC to +70ºC |
| Dimensions |
Ø95 x 91 mm (SIR24B)Ø95 x 135 mm (SIR24BL/SIR24BZA)
Ø95 x 95 x 135 mm (SIR24B+BSLC) |
| IP protection |
IP54-SIR24BIP65-SIR24BL
IP65-SIR24BZA IP65-SIR24B+BSLC |
