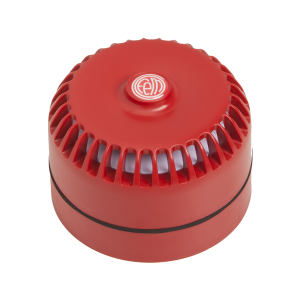

DUAL TONE ALARM SOUNDER SIR24B
DUAL TONE ALARM SOUNDER SIR24B
Indoor and outdoor alarm sounder
Description
Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.
SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC
Indoor and outdoor sounder made of in red ABS.
High volume sound. Low consumption.
32 selectables tones. Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base.
BSLC: Base with light, certified according EN54-23.
Features
| Voltage range | 9-28 Vdc |
| Consumption (using tone 3) | a 24 Vdc 16 mA |
| Output volume (tone 3) | a 24 Vdc 102 dB (A) |
| Operating temperature | -25ºC a +70ºC |
| Dimensions | Ø95 x 91 mm (SIR24B)
Ø95 x 135 mm (SIR24BL/SIR24BZA) Ø95 x 95 x 135 mm (SIR24B+BSLC) |
| IP protection | IP54-SIR24B IP65-SIR24BL IP65-SIR24BZA IP65-SIR24B+BSLC |
-
-
