SOUNDER WITH BASE AND LIGHT SIR24B+BSLC
SOUNDER WITH BASE AND LIGHT SIR24B+BSLC

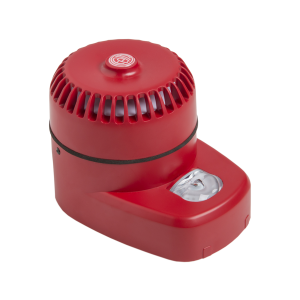

Sounder SIR24B + BASE with light BSLC
Description
Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.
SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC
Indoor and outdoor sounder made of in red ABS.
High volume sound. Low consumption.
32 selectables tones. Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base.
BSLC: Base with light, certified according EN54-23.
Features
| Voltage range | 9-28 Vdc |
| Consumption (using tone 3) | a 24 Vdc 16 mA |
| Output volume (tone 3) | a 24 Vdc 102 dB (A) |
| Operating temperature | -25ºC a +70ºC |
| Dimensions | Ø95 x 91 mm (SIR24B)
Ø95 x 135 mm (SIR24BL/SIR24BZA) Ø95 x 95 x 135 mm (SIR24B+BSLC) |
| IP protection | IP54-SIR24B
IP65-SIR24BL IP65-SIR24BZA IP65-SIR24B+BSLC |
-
-
