DUAL TONE ALARM SOUNDER SIR24B
DUAL TONE ALARM SOUNDER SIR24B
Indoor and outdoor alarm sounder
Description
Indoor and outdoor sounders to connect directly to the sounder output of the control panles or relay modules.
SIRENA SIR24B, SIR24BL, SIR24BZA & BSLC

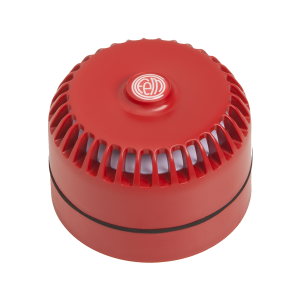

Indoor and outdoor sounder made of red ABS plastic.
High volumen sound.
Low consumption.
32 selectables tones.
Volume control.
Automatic synchronization.
SIR24B: Sounder.
SIR24BL: Sounder with light.
SIR24BZA: Sounder with high base
BSLC: Base with light, certified according EN54-23.
Features
| Voltage range | 9-28 Vdc |
| Consumption (using tone 3) | at 24 Vdc 16 mA |
| Output volume (tone 3) | at 24 Vdc 102 dB (A) |
| Operative temperature | -25ºC to +70ºC |
| Dimensions | Ø95 x 91 mm (SIR24B)
Ø95 x 135 mm (SIR24BL/SIR24BZA) Ø95 x 95 x 135 mm (SIR24B+BSLC) |
| IP protection | IP54-SIR24BIP65-SIR24BLIP65-SIR24BZA
IP65-SIR24B+BSLC |
-
-
